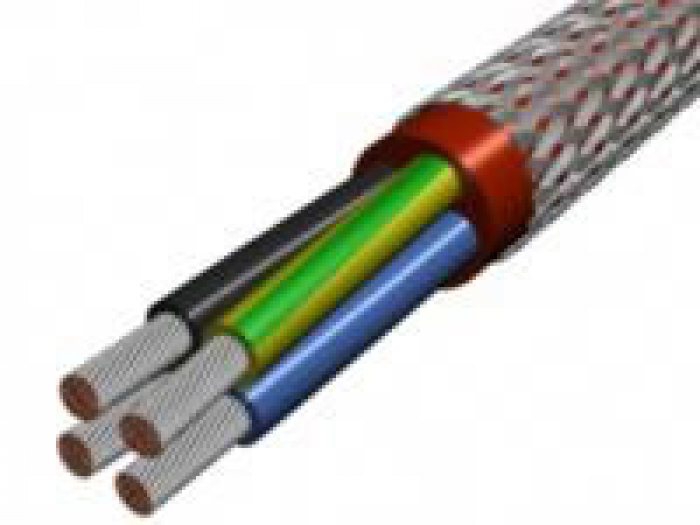

Tip: conductoare din cupru cu izolatie din cauciuc siliconic protejat cu tresa din fibra de sticla.
Simbol international: SIHF/GL, FG4G4T2/2 (VDE 0250).
Tensiunea nominala: 300/500 V.
Domeniu de utilizare: pentru alimentarea instalatiilor electrice la o temperatura constanta de 180°C(max. 200°C), nefiind protejat în timpul manipularii.
Constructia:
Conductor: din cupru flexibile, stanate(SiFH/GL) sau nestanate (FG4G4T2/2).
Izolatie: din cauciuc siliconic pe fiecare manunchi.
Mantaua: din cauciuc siliconic maroniu spre rosu, protejat cu o tresa din fibra de sticla.
Temperatura mediului ambiant: pozat -60 °C la +180°C , temperatura maxima a conductorului: +200°C.
Parametri tehnici:
| Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala | ||
|---|---|---|---|---|---|---|
| (mm2) | (mm) | (mm) | (kg/km) | (kg/km) | ||
| 2 | x | 0,75 | 6,90 | 24×0,20 | 14,4 | 65 |
| 2 | x | 1 | 7,10 | 32×0,20 | 19,0 | 76 |
| 2 | x | 1,5 | 8,30 | 30×0,25 | 29,0 | 98 |
| 2 | x | 2,5 | 9,60 | 50×0,25 | 48,0 | 138 |
| 2 | x | 4 | 11,70 | 56×0,30 | 77,0 | 240 |
| 2 | x | 6 | 13,50 | 84×0,30 | 115,0 | 297 |
| 3 | x | 0,75 | 7,20 | 24×0,20 | 21,6 | 75 |
| 3 | x | 1 | 7,90 | 32×0,20 | 29,0 | 90 |
| 3 | x | 1,5 | 8,40 | 30×0,25 | 43,0 | 116 |
| 3 | x | 2,5 | 10,10 | 50×0,25 | 72,0 | 172 |
| 3 | x | 4 | 11,80 | 56×0,30 | 115,0 | 247 |
| 3 | x | 6 | 14,60 | 84×0,30 | 173,0 | 385 |
| 4 | x | 0,75 | 8,20 | 24×0,20 | 29,0 | 97 |
| 4 | x | 1 | 8,50 | 32×0,20 | 38,0 | 113 |
| 4 | x | 1,5 | 9,20 | 30×0,25 | 58,0 | 143 |
| 4 | x | 2,5 | 11,00 | 50×0,25 | 96,0 | 213 |
| 4 | x | 4 | 13,50 | 56×0,30 | 154,0 | 325 |
| 4 | x | 6 | 16,30 | 84×0,30 | 230,0 | 548 |
| 5 | x | 0,75 | 9,00 | 24×0,20 | 36,0 | 116 |
| 5 | x | 1 | 9,20 | 32×0,20 | 48,0 | 135 |
| 5 | x | 1,5 | 10,10 | 30×0,25 | 72,0 | 171 |
| 5 | x | 2,5 | 12,00 | 50×0,25 | 120,0 | 260 |
| 5 | x | 4 | 15,00 | 56×0,30 | 192,0 | 402 |
| 5 | x | 6 | 17,50 | 84×0,30 | 288,0 | 570 |
| 6 | x | 0,75 | 9,70 | 24×0,20 | 43,0 | 133 |
| 6 | x | 1 | 10,50 | 32×0,20 | 58,0 | 155 |
| 6 | x | 1,5 | 10,90 | 32×0,25 | 86,0 | 192 |
| 6 | x | 2,5 | 13,50 | 50×0,25 | 144,0 | 298 |
| 6 | x | 4 | 16,60 | 56×0,30 | 230,0 | 451 |
| 7 | x | 0,75 | 9,70 | 24×0,20 | 50,0 | 147 |
| 7 | x | 1 | 10,50 | 32×0,20 | 67,0 | 172 |
| 7 | x | 1,5 | 10,90 | 30×0,25 | 101,0 | 214 |
| 7 | x | 2,5 | 13,50 | 50×0,25 | 168,0 | 334 |
| 7 | x | 4 | 16,60 | 56×0,30 | 269,0 | 520 |
