Tip: cablu din cupru, cu ecran de protectie marita la foc si fara halogen (fara degajare de gaze toxice sau corozive).
Simbol inetrnational: NHXCH E90/FE180 (VDE 0271).
Tensiunea nominala: 0,6/1 kV.
Domeniu de utilizare: in locuri uscate, umede, liber sau in pamant protejate in tevi de protectie. Cablul ofera ecranare la perturbatiile frecventiale, este recomandat in mediu exploziv, protejarea oamenilor la diverse noxe. Cablul isi mentine izolatia la temp. de peste 800°C cel putin 180 min, iar functionalitatea sistemului pentru 90 de minute.

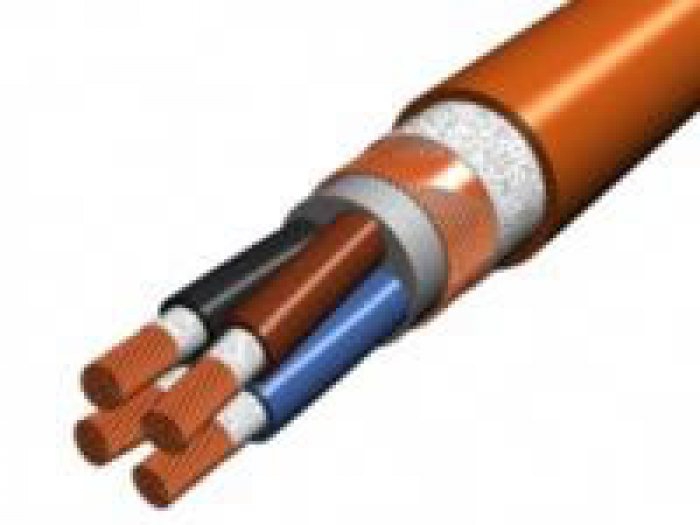

Constructia:
Conductor: din cupru uni- sau multifilare, protejate special cu minerale.
Izolatie: pe manunchi cu polietilena speciala (3GI10).
Strat protector: impotriva flacarilor.
Umplutura: rezistenta la foc si fara degajare de halogen.
Ecranare: din fire de cupru si folie protectoare din cupru; folie protectoare din PETP.
Mantaua: de culoare portocalie si este realizata din poliolefin copolimerizat (THP sau HM4).
Temperatura mediului ambiant: pozat: de la -40°C la +70°C, in miscare: de la -25°C la +70°C, temperatura maxima admisa pe conductor: +90°C .
Parametri tehnici:
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
---|---|---|---|---|
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
2×1,5 RE/1,5 | 16 | 1×1,38 | 54 | 300 |
2×2,5 RE/2,5 | 17 | 1×1,78 | 83 | 350 |
3×1,5 RE/1,5 | 17 | 1×1,38 | 73 | 320 |
3×2,5 RE/2,5 | 18 | 1×1,78 | 113 | 380 |
3×4 RE/4 | 19 | 1×2,25 | 168 | 480 |
3×6 RE/6 | 20 | 1×2,76 | 250 | 600 |
3×10 RE/10 | 23 | 1×3,56 | 425 | 850 |
3×16 RM/16 | 26 | 1×4,51 | 670 | 1200 |
3×25 RM/25 | 30 | 19×2,52 | 1045 | 1700 |
3×35 RM/35 | 32 | 7×2,52 | 1460 | 2200 |
3×50 RM/50 | 37 | 19×1,83 | 2083 | 2900 |
3×70 RM/70 | 42 | 19×2,17 | 2913 | 3900 |
3×95 RM/95 | 48 | 19×2,52 | 3949 | 5200 |
3×120 RM/120 | 52 | 37×2,03 | 4985 | 6400 |
3×185 RM/95 | 62 | 37×2,52 | 6649 | 8800 |
3×240 RM/120 | 70 | 61×2,24 | 8585 | 11300 |
3×150 RM/70 | 56 | 37×2,27 | 5313 | 7100 |
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
4×1,5 RE/1,5 | 18 | 1×1,38 | 88 | 450 |
4×2,5 RE/2,5 | 19 | 1×1,78 | 138 | 500 |
4×4 RE/4 | 21 | 1×2,25 | 208 | 600 |
4×6 RE/6 | 22 | 1×2,76 | 309 | 750 |
4×10 RE/10 | 25 | 1×3,56 | 525 | 1100 |
4×16 RM/16 | 29 | 1×4,51 | 829 | 1500 |
4×25 RM/16 | 32 | 19×2,52 | 1190 | 2000 |
4×35 RM/16 | 35 | 7×2,52 | 1590 | 2500 |
4×50 RM/25 | 40 | 19×1,83 | 2295 | 3300 |
4×70 RM/35 | 44 | 19×2,17 | 3210 | 4400 |
4×95 RM/50 | 52 | 19×2,52 | 4383 | 6100 |
4×120 RM/70 | 57 | 37×2,03 | 5613 | 7500 |
4×150 RM/70 | 62 | 37×2,27 | 6813 | 9000 |
4×185 RM/95 | 68 | 37×2,52 | 8499 | 11000 |
4×240 RM/120 | 76 | 61×2,24 | 10985 | 14500 |
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
7×1,5 RE/2,5 | 22 | 1×1,38 | 139 | 600 |
10×1,5 RE/2,5 | 25 | 1×1,38 | 183 | 700 |
12×1,5 RE/2,5 | 27 | 1×1,38 | 214 | 750 |
16×1,5 RE/4 | 29 | 1×1,38 | 280 | 900 |
21×1,5 RE/4 | 31 | 1×1,38 | 384 | 1100 |
24×1,5 RE/6 | 34 | 1×1,38 | 430 | 1300 |
30×1,5 RE/6 | 36 | 1×1,38 | 520 | 1500 |
7×2,5 RE/2,5 | 22 | 1×1,78 | 208 | 650 |
10×2,5 RE/4 | 27 | 1×1,78 | 298 | 900 |
12×2,5 RE/4 | 28 | 1×1,78 | 348 | 950 |
16×2,5 RE/6 | 30 | 1×1,78 | 470 | 1200 |
21×2,5 RE/6 | 33 | 1×1,78 | 595 | 1400 |
24×2,5 RE/10 | 37 | 1×1,78 | 725 | 1700 |
30×2,5 RE/10 | 39 | 1×1,78 | 875 | 1900 |
