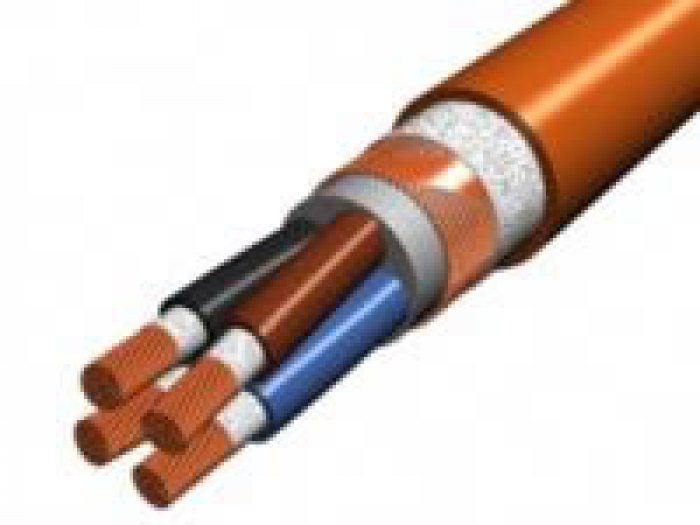

Tip: cablu din cupru, cu ecranare din cupru, cu functionalitate in flacara si fara degajare de halogen (fara degajare de gaze toxice sau corozive).
Simbol inetrnational: NHXCH E30/FE180 (VDE 0266).
Tensiunea nominala: 0,6/1 kV.
Domeniu de utilizare: in locuri uscate, umede, liber sau in pamant protejate in tevi de protectie. Cablul ofera ecranare la perturbatiile frecventiale, este recomandat in mediu exploziv, protejarea oamenilor la diverse noxe. Cablul mentine izolatia la temp. de peste 800°C cel putin 180 mine.
Constructia:
Conductor: din cupru uni- sau multifilar.
Izolatie: pe manunchi cu polietilena speciala (2XI1).
Umplutura: din materiale sintetice rezistente la foc.
Mantaua: de culoare portocalie, este rezistenta la foc si fara halogen.
Temperatura mediului ambiant: pozat: de la -40°C la +70°C, in miscare: de la -25°C la +70°C, temperatura maxima admisa pe conductor: +90°C .
Parametri tehnici:
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
---|---|---|---|---|
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
2×1,5 RE/1,5 | 15 | 1×1,38 | 54 | 250 |
2×2,5 RE/2,5 | 16 | 1×1,78 | 83 | 380 |
3×1,5 RE/1,5 | 15 | 1×1,38 | 73 | 250 |
3×2,5 RE/2,5 | 16 | 1×1,78 | 113 | 320 |
3×4 RE/4 | 17 | 1×2,25 | 168 | 400 |
3×6 RE/6 | 18 | 1×2,76 | 250 | 500 |
3×10 RE/10 | 20 | 1×3,56 | 425 | 750 |
3×16 RE/16 | 23 | 1×4,51 | 670 | 1100 |
3×25 RM/25 | 27 | 7×2,13 | 1045 | 1500 |
3×35 RM/35 | 30 | 7×2,52 | 1460 | 1900 |
3×50 RM/50 | 33 | 19×1,83 | 2083 | 2400 |
3×70 RM/70 | 38 | 19×2,17 | 2913 | 3400 |
3×95 RM/95 | 42 | 19×2,52 | 3949 | 4500 |
3×120 RM/120 | 48 | 37×2,03 | 4985 | 5600 |
3×150 RM/70 | 53 | 37×2,27 | 5313 | 6700 |
3×185 RM/95 | 58 | 37×2,52 | 6649 | 8400 |
3×240 RM/120 | 65 | 61×2,24 | 8585 | 10800 |
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
4×1,5 RE/1,5 | 17 | 1×1,38 | 88 | 300 |
4×2,5 RE/2,5 | 18 | 1×1,78 | 138 | 400 |
4×4 RE/4 | 19 | 1×2,25 | 208 | 470 |
4×6 RE/6 | 21 | 1×2,76 | 309 | 600 |
4×10 RE/10 | 23 | 1×3,56 | 525 | 850 |
4×16 RE/16 | 26 | 1×4,51 | 829 | 1250 |
4×25 RM/16 | 30 | 7×2,13 | 1190 | 1800 |
4×35 RM/16 | 33 | 7×2,52 | 1590 | 2300 |
4×50 RM/25 | 37 | 19×1,83 | 2295 | 3000 |
4×70 RM/35 | 42 | 19×2,17 | 3210 | 4200 |
4×95 RM/50 | 47 | 19×2,52 | 4383 | 5700 |
4×120 RM/70 | 53 | 37×2,03 | 5613 | 7200 |
4×150 RM/70 | 58 | 37×2,27 | 6813 | 8700 |
4×185 RM/95 | 65 | 37×2,52 | 8499 | 10500 |
4×240 RM/120 | 70 | 61×2,24 | 10985 | 14000 |
Sectiunea | Diametrul exterior | Constructia | Masa cuprului | Masa totala |
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) |
7×1,5 RE/2,5 | 18 | 1×1,38 | 139 | 480 |
10×1,5 RE/2,5 | 22 | 1×1,38 | 183 | 630 |
12×1,5 RE/2,5 | 22 | 1×1,38 | 214 | 700 |
16×1,5 RE/4 | 23 | 1×1,38 | 280 | 850 |
21×1,5 RE/4 | 25 | 1×1,38 | 384 | 1050 |
24×1,5 RE/6 | 29 | 1×1,38 | 430 | 1200 |
30×1,5 RE/6 | 31 | 1×1,38 | 520 | 1400 |
24×2,5 RE/10 | 32 | 1×1,78 | 725 | 1500 |
30×2,5 RE/10 | 34 | 1×1,78 | 875 | 1800 |
7×2,5 RE/2,5 | 20 | 1×1,78 | 208 | 600 |
10×2,5 RE/4 | 24 | 1×1,78 | 298 | 800 |
12×2,5 RE/4 | 24 | 1×1,78 | 348 | 900 |
16×2,5 RE/6 | 26 | 1×1,78 | 470 | 1100 |
21×2,5 RE/6 | 29 | 1×1,78 | 595 | 1350 |
