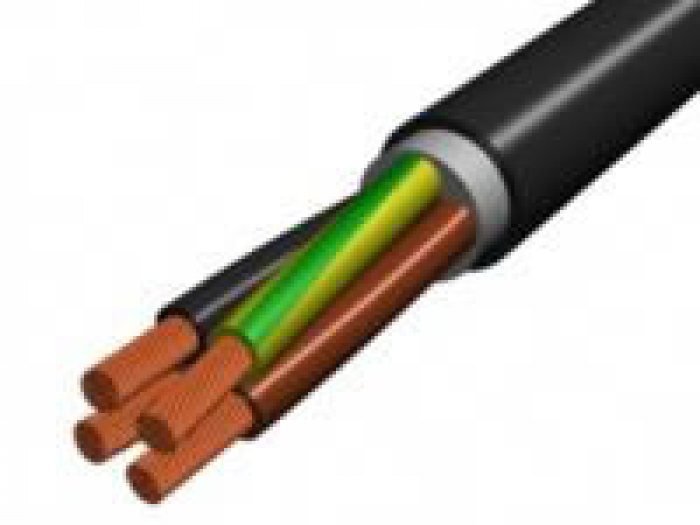

Tip: cablu din cupru, cu izolatie din polietilena si manta exterioara din PVC.
Simbol inetrnational: N2XY (VDE 0276).
Simbol intern: C2XY.
Tensiunea nominala: 0,6/1 kV.
Domeniu de utilizare: în locuri uscate, umede, în apa sau în pamânt, permitând o încalzire mai mare a conductoarelor decât cele cu izolatie de PVC.
Constructia:
Conductoare: din cupru uni- sau multifilare.
Izolatie: pe fiecare manunchi, din polietilena speciala.
Umplutura:intre manunchiuri
Mantaua: din PVC de culoare neagra.
Temperatura mediului ambiant: -5 °C la +70 °C, temperatura maxima admisa pe fiecare conductor: +90 °C.
Parametri tehnici:
Sectiunea | -J | -O | Diametrul exterior min. | Diametrul exterior max. | Masa cuprului | Masa totala | Intensitatea maxima admisa în pamânt | Intensitatea maxima admisa în aer | ||
---|---|---|---|---|---|---|---|---|---|---|
(mm2) | (mm) | (mm) | (kg/km) | (kg/km) | (A) | (A) | ||||
2 | x | 1,5 RE | • | 8,8 | 10,5 | 30 | 140 | 34 | 24 | |
2 | x | 2,5 RE | • | 9,6 | 11 | 50 | 170 | 46 | 33 | |
2 | x | 4 RE | • | 10,5 | 12 | 80 | 220 | 59 | 45 | |
2 | x | 6 RM | • | 11,5 | 14 | 120 | 290 | 74 | 58 | |
2 | x | 10 RM | • | 13 | 16 | 200 | 410 | 101 | 80 | |
2 | x | 16 RM | • | 15 | 18,5 | 320 | 560 | 128 | 107 | |
3 | x | 1,5 RE | • | • | 9,2 | 11 | 45 | 160 | 29 | 22 |
3 | x | 2,5 RE | • | • | 10 | 12 | 75 | 200 | 40 | 30 |
3 | x | 4 RE | • | • | 11 | 13 | 120 | 260 | 51 | 40 |
3 | x | 6 RM | • | • | 12 | 15 | 180 | 360 | 64 | 52 |
3 | x | 10 RM | • | • | 14 | 17 | 300 | 510 | 88 | 71 |
3 | x | 16 RM | • | • | 16 | 19,5 | 480 | 720 | 111 | 96 |
4 | x | 1,5 RE | • | • | 9,8 | 11,5 | 60 | 190 | 26 | 22 |
4 | x | 2,5 RE | • | • | 10,5 | 12,5 | 100 | 240 | 36 | 30 |
4 | x | 4 RE | • | • | 12 | 14 | 160 | 310 | 46 | 40 |
4 | x | 6 RM | • | • | 13,5 | 16 | 240 | 440 | 58 | 52 |
4 | x | 10 RM | • | • | 15,5 | 18,5 | 400 | 630 | 79 | 71 |
4 | x | 16 RM | • | • | 17,5 | 21 | 640 | 900 | 100 | 96 |
5 | x | 1,5 RE | • | 10,5 | 12,5 | 75 | 230 | 26 | 22 | |
5 | x | 2,5 RE | • | 11,5 | 13,5 | 125 | 300 | 36 | 30 | |
5 | x | 4 RE | • | 13 | 15 | 200 | 390 | 46 | 40 | |
5 | x | 6 RM | • | 14,5 | 17,5 | 300 | 540 | 58 | 52 | |
5 | x | 10 RM | • | 16,5 | 20 | 500 | 600 | 79 | 71 | |
5 | x | 16 RM | • | 19,5 | 23 | 800 | 1130 | 100 | 96 |
